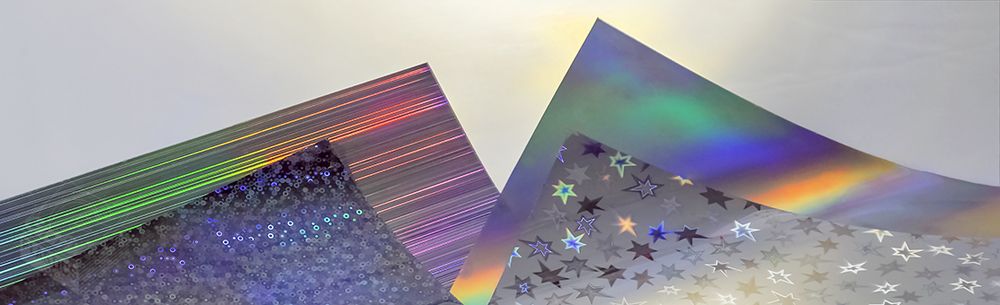

HoloGrafix ™ Decorative Holographic Film

Holografix ™ is a unique family of products with a polyester film base that has been embossed and metalized to bring out a bright, vibrant, multi-dimensional pattern. Holografix film can be color-tinted and pressure-sensitive-coated for a variety of applications. Grafix stocks a number of color and pattern variations, all with a 90# stay-flat liner. Custom color and pattern combinations are available for production minimums.

Because our holographic film is made of polyester, it is extremely durable, dimensionally-stable, acid-free, waterproof, and contains no plasticizers. Our Base Holografix film can be laminated, laser and die-cut, screen printed, and further fabricated … your imagination is the limit!

Features


Features of Holografix Sheets and Film:

  • Polyester base film
  • Durable
  • Acid-free
  • Waterproof
  • No plasticizers

Types

Holografix offers you plenty of choices*:

  • Small Dot – Stardust Pattern
  • Med. Dot – Sequins Pattern
  • Decorative Shapes
  • Brushed Metal
  • Plain .002″ base silver film
  • Silver and color base film
  • Clear patterns – (custom order)

*Not all finishes are available for each gauge and size

HGLB – Light Blue Stars
LtBlueStars

HGMS – Silver Stars
HGST
HGDB – Dark Blue Stars
DkBlueStars

HGRH – Red Hearts
PinkHearts

HGPR – Pink RainPeachRain

 HGGB – Green BubblesGreenBubbles

HGWS – White SparkleWhiteSparkle

HGPS – Pink SparklePinkSparcle

HGCR – Cherry Redcherryred

HGRB – Royal BlueRoyalBlue

 HGEG – Emerald GreenEmeraldGreen HGOS – Orange SparkleOrangeSparkle
HGSS – Silver SequinsHGSSHGYS – Yellow SequinsYellowSequins HGGS – Grape SequinsGrapeSequins
 HGSB- Silver BrushedSilverBrushedHGCB – Copper BrushedCopperBrushedHGGB – Gold BrushedGoldBrushed

Stock


Looking to get something quickly? We’ve got you covered with the following Adhesive DuraLar materials in stock and ready to go.

Raw Materials

Master Rolls (by width)

Unfortunately we do not keep master rolls in stock. 90% of the time we convert HoloGrafix films into their stock sheet sizes. Sometimes we have master rolls in stock, so check with us to see what me might have. Otherwise rolls of HoloGrafix materials have to be custom manufactured.

Finished goods stock sizes:

Sheets

 6 x 8"9 x 12"18 x 24"24 x 36"
Silver and Colors/PSA

Contact us today to discuss your size requirements.

Specs

Properties are based on .002″/50um HoloGrafix polyester film. Properties of other gauges and finishes of DuraLar polyester film can vary.

Phyical Properties
Thickness
FaceStock (Clear Duralar).002"/50um, .005"/125um+/-5%ASTM D 3653
Adhesive.001"/25um+/-10%
Liner, 67#+/-5%
PSA Adhesion Properties
Ultimate Peal fromLoop TackShearPeal
Stainless Steel4.1 lbs4 hours4.0 lbs
HDPE2.3na2.2 lbs
Usage Characteristics
Application Temp Min.25 Deg. F/(-4 deg C)
Service Temp-40 F to 302F/-40C to 150C
Environmental Resistance
Moisture & HumidityExcellent
Sunlight & WeatherVery GoodNote: Not UV Stablized facestock.
Heat resistanceVery Good
PH ValueNeutral
Chemical Resistance
AcidsExcellent
AlkalisExcellent
OilsExcellent

Duralar facestock properties can be found on the Clear DuraLar product page.  For more specific questions regarding DuraLar Film, please contact your sales representitive today!

Important Notice:  Grafix makes no warranties, express or implied, including but not limited to any implied warranty of merchantability of fitness for a particular purpose.  The user is responsible for determining whether the Grafix product is fit for a particular purpose and suitable for the user’s method of application.  Please remember that many factors can affect the use and performance of a Grafix Plastics film product in a particular application.  Given the variety of factors that can affect the use and performance of a Grafix product, some of which are uniquely within the user’s knowledge and control, it is essential that the user evaluate the Grafix product to determine whether it is fit for a particular purpose and suitable for the user’s method of application.
Limitation of Remedies and Liability:  If the Grafix product is proven to be defective, THE EXCLUSIVE REMEDY, AT GRAFIX’S OPTION, SHALL BE TO REFUND THE PURCHASE PRICE OF OR TO REPAIR OR REPLACE THE DEFECTIVE GRAFIX PRODUCT. Grafix shall not otherwise be liable for loss or damages, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including, but not limited to, contract, negligence, warranty or strict liability.

Safety


  • DEHP, DBP and BBP free. Contact us for more details
  • RoHS Compliant. Contact us for more details


Our experts are ready to help make your job easy! Please contact us with your requirements today by clicking the start an inquiry button.
