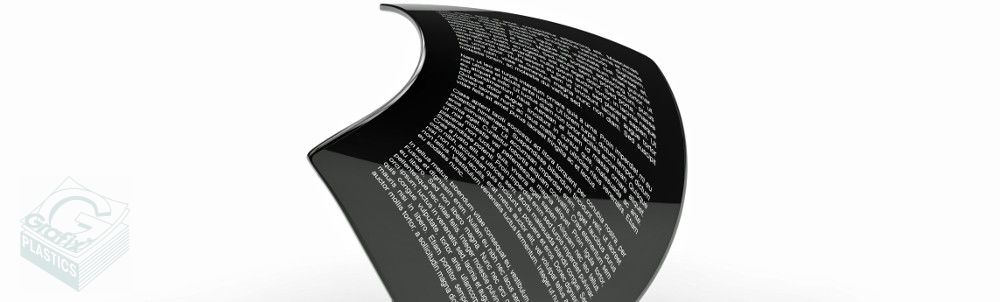

Produce high-quality positive and negative masks directly from your computer and laser printer! Our translucent direct imaging film is designed to produce high image density with superior toner adhesion and optimum transparency.
Using your computer and a laser printer (up to 1800 dpi) or plain paper copier, you can produce positive and negative line art and half tones without going through the camera step or secondary chemical processing! Grafix imaging film saves time and money in a variety of plate-making applications, such as screen printing, sign manufacturing, plate etching and circuit board layouts.
Features
- Printable on two sides
- Anti-static
- Compatible with most laser printers and copiers
- Dimensionally-stable
- Heat-resistant
- Excellent toner adhesion
- Resists curling
- Excellent contact transparency
- Archival base
Stock
Stock gauges and finishes*:
- .003″/75um 2/Side matte/printable surfaces
- Packs of 100 sheets: 8.5″x11″, 8.5″x14″, 11″x17″, 12″x18″, 13″x17″
Custom Order gauges and finishes*:
- .004″/100um 2/Side matte/printable surfaces
- .004″/100um Clear 2/side printable surface
Specs
Typical Properties of Grafix TIF Film. Based on .003″/75um thick film. Other thicknesses can vary.
Film Property | Value | Units | Test Method | ||
---|---|---|---|---|---|
Physical Properties | |||||
Tensile Strength (MD) | 28000 | psi | ASTM D 882 | ||
Tensile Strength (TD) | 34000 | psi | ASTM D 882 | ||
Strength Elongation MD | 15000 | psi | ASTM D 882 | ||
Strength F-5 TD | 14000 | psi | ASTM D 882 | ||
Modulus MD | 710000 | psi | ASTM D 882 | ||
Modulus TD | 740000 | psi | ASTM D 882 | ||
Elongation MD | 115 | % | ASTM D 882 | ||
Elongation TD | 92 | % | ASTM D 882 | ||
Density | 1.39 | g/cc | ASTM D 1505 | ||
Viscosity | 0.56 | dL/g | ASTM D 4603 | ||
Electrical Properties | |||||
Dielectric Strength | |||||
AC, 20ยฐC, .00092″ | 7000 | volts/mil | ASTM D 149-64 | ||
Dielectric Constant | |||||
25ยฐC, 1 kHz | 3.2 | ASTM D150-81 | |||
Dissipation Factor | |||||
25ยฐC, 1 kHz | 0.005 | ASTM D150-65 | |||
Volume Resistivity 25ยฐC | 1.0E+19 | ohm-cm | ASTM D257-78 | ||
Corona Threshold | 425 | V-AC | ASTM D2275-80 | ||
Thermal Properties | |||||
Melt Point | 200 | ยฐC | |||
Service Temperature Range | -70-150 | C | |||
Dimensional Stability | |||||
at 105ยฐ MD | 0.6 | % | Measured Shrinkage | ||
at 105ยฐ TD | 0.9 | % | Measured Shrinkage | ||
at 150ยฐ MD | 1.8 | % | Measured Shrinkage | ||
at 150ยฐ TD | 1.1 | % | Measured Shrinkage | ||
Specific Heat | 0.28 | cal/g/ยฐC | |||
Thermal Expansion | 1.7×10-5 | in./in./ยฐC | ASTM D 696 | ||
UL94 Flame Class | 94VTM-2 | Slow to self Extinguishing | |||
Optical Properties | |||||
Transmission Visible | > 88 | % | |||
Transmission Near IR | >80 | % | |||
Haze | <1 | % | |||
Refractive Index | 1.65 | RI | |||
Chemical Properties | |||||
Resistance by Class | |||||
Acids | Good | ||||
Bases | Good | ||||
Solvents | Excellent | ||||
Detergents | Excellent | ||||
Oils | Good | ||||
Permiability | |||||
Water Vapor | 0.1 | g/100 in2/24hr. | ASTM E-96 | ||
Carbon Dioxide | 16 | g/100 in2/24hr. | ASTM D1434-58 | ||
Mosture Absorbtion | <.8 | % | ASTM D-570-63 | ||
Chemical Resistance | Most Household Agents & Chemicals |
For more specific questions regarding Grafix Drafting Film, please contact your sales representative today!
Important Notice: Grafix makes no warranties, express or implied, including but not limited to any implied warranty of merchantability of fitness for a particular purpose. The user is responsible for determining whether the Grafix product is fit for a particular purpose and suitable for the user’s method of application. Please remember that many factors can affect the use and performance of a Grafix Plastics film product in a particular application. Given the variety of factors that can affect the use and performance of a Grafix product, some of which are uniquely within the user’s knowledge and control, it is essential that the user evaluate the Grafix product to determine whether it is fit for a particular purpose and suitable for the user’s method of application.
Limitation of Remedies and Liability: If the Grafix product is proven to be defective, THE EXCLUSIVE REMEDY, AT GRAFIX’S OPTION, SHALL BE TO REFUND THE PURCHASE PRICE OF OR TO REPAIR OR REPLACE THE DEFECTIVE GRAFIX PRODUCT. Grafix shall not otherwise be liable for loss or damages, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including, but not limited to, contract, negligence, warranty or strict liability.
Safety
- DEHP, DBP and BBP free. Contact us for more details
- RoHS Compliant. Contact us for more details
