Examples of Bowed DFML Grade Film on top of LEDs

When working with arrays of LED’s our DFML Grade Asymmetric Diffuser Film adds dramatic linear effects to bright point arrays such as LEDs. However, when the film is bowed, the effects are quite spectacular.

Just imagine the design possibilities with this film! Our experts are ready to help make creativity a reality! Please contact us with your requirements today by clicking the start an inquiry button.

Can asymmetric light diffuser film be recycled?

mylar recycling — Polyester recycling symbol

Can asymmetric light diffuser film be recycled? Yes it can, as long as it’s recycled with other polyester resin materials. Asymmetric light diffuser film can be recycled with any other materials that have this symbol.

Is our asymmetric light diffuser film biodegradable?

Is our asymmetric light diffuser film biodegradable? No, it is not. The only biodegradable film product we offer is acetate film and sheets.

Does Asymmetric light diffuser film have good electrical properties?

Does Asymmetric light diffuser film have good electrical properties? Sort of. Although it’s made out of polyester, it’s not meant for direct electrical exposure, and we don’t have any testing data on this product. For electrical applications, we recommend our Hazy DuraLar™ polyester film products.
Please contact us today and we can help you with your requirements.

Is asymmetric light diffuser film approved for direct and indirect skin contact?

Is asymmetric light diffuser film approved for direct and indirect skin contact? Although asymmetric light diffusers are perfectly safe for direct and indirect skin contact, they are not certified as such.

Are any of our optical films, including our various diffuser film and paper, approved for direct food contact?

Are any of our optical films, including our various diffuser film and paper, approved for direct food contact? No. Grafix stocks other types of film products that are, including acetate, specific brands andgrades of polyester film, HDPE and polypropylene. Other types food-safe films are available as a custom order; larger production minimums may apply.

Are our asymmetric diffuser films suitable for outdoor use?

Are our asymmetric diffuser films suitable for outdoor use? No, not as a first surface. If exposed to the elements, our asymmetric diffuser film will degrade over time. If you need to use this material outside, it must be contained in some-thing else that will keep it from being exposed to excessive UV and moisture.

What is the heat resistance of asymmetrical diffuser film?

What is the heat resistance of asymmetrical diffuser film? Asymmetric diffuser film is designed to withstand heat up to 80C/145F. Exposure at higher temperatures will cause the film to start to melt, and its diffusion lens system will become deformed.

How can I print on DFML?

DFML can be printed on its gloss side, by Screen Printing, or Offset Lithography. DFML might be suitable for Solvent, Latex or UV Curable Inkjet printing, which are the only digital printing options could work on DFML. DO NOT USE DFML in any plain paper copier, laser printer, or other heat fusing digital printing technology.

Is DFML Thermoformable?

Yes, DFML is Thermoformable. However the more you draw this film, the more the micro louvre lens surface gets distorted. This could be a good thing or a bad thing depending on the diffusion you are trying to create. For something like this, it is always best to experiment.

Privacy Overview

This website uses cookies to improve visitors’ experience of our website. Some cookies, categorized as necessary, are always stored by your browser as they are essential for the proper behavior of this site. We also use third-party cookies that help analyze and understand how visitors use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. Opting out of some of these cookies may impact your browsing experience.

Necessary

Always Enabled

Necessary cookies are absolutely essential for the website to function properly. These cookies ensure basic functionalities and security features of the website, anonymously.

Cookie	Duration	Description
__cfduid	1 month	The cookie is used by cdn services like CloudFare to identify individual clients behind a shared IP address and apply security settings on a per-client basis. It does not correspond to any user ID in the web application and does not store any personally identifiable information.
cookielawinfo-checbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

Functional

Performance

Analytics

Others

Start an Inquiry

"*" indicates required fields

Have you done business with us before?*

Yes

First, please tell us your type of business

Retail store inquiries are usually handled by our Consumer Products Division directly. Please click on the preceding link to be transferred to their website.

For small quantities, personal use, or retailing options, our consumer retail division can assist you best.
More info about buying from us Buy wholesale craft supplies

(If you are a manufacturer of consumer goods, please select 'Manufacturer' from the dropdown menu above.)

Please provide ONE of the following (and entering company info will becomes optional):

Account number

Enter your account number, it will begin with a "DM", "DP", "D" or "U".

PO number

Enter a PO number you've used with us.

Invoice number

A past Grafix invoice number

Examples of Bowed DFML Grade Film on top of LEDs

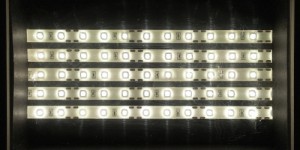

Basic LED Array

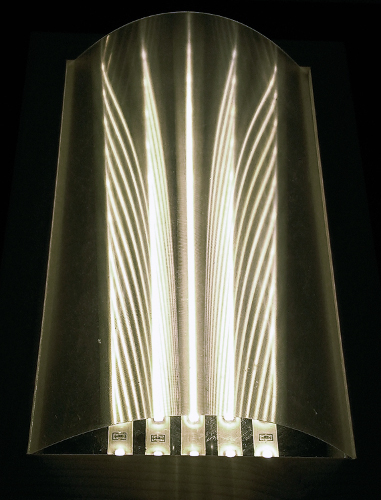

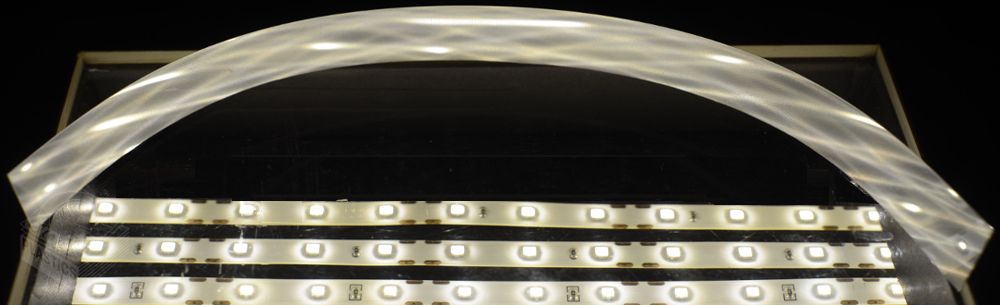

Bowed DFML over LED Array

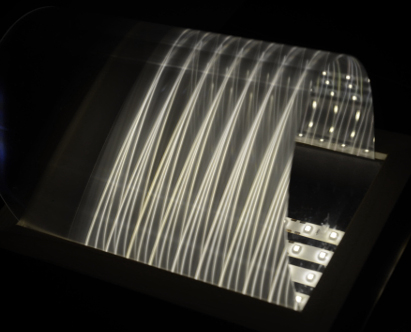

Same configuration, different angle.
